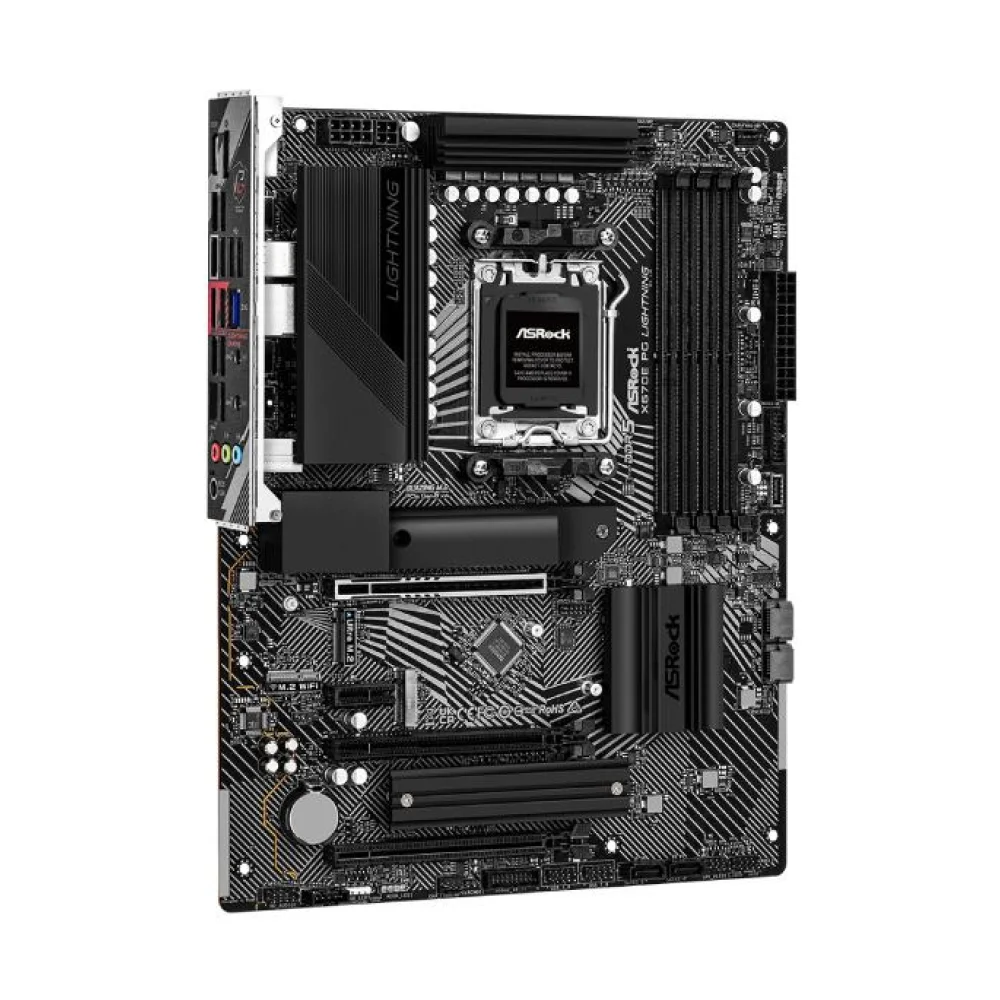

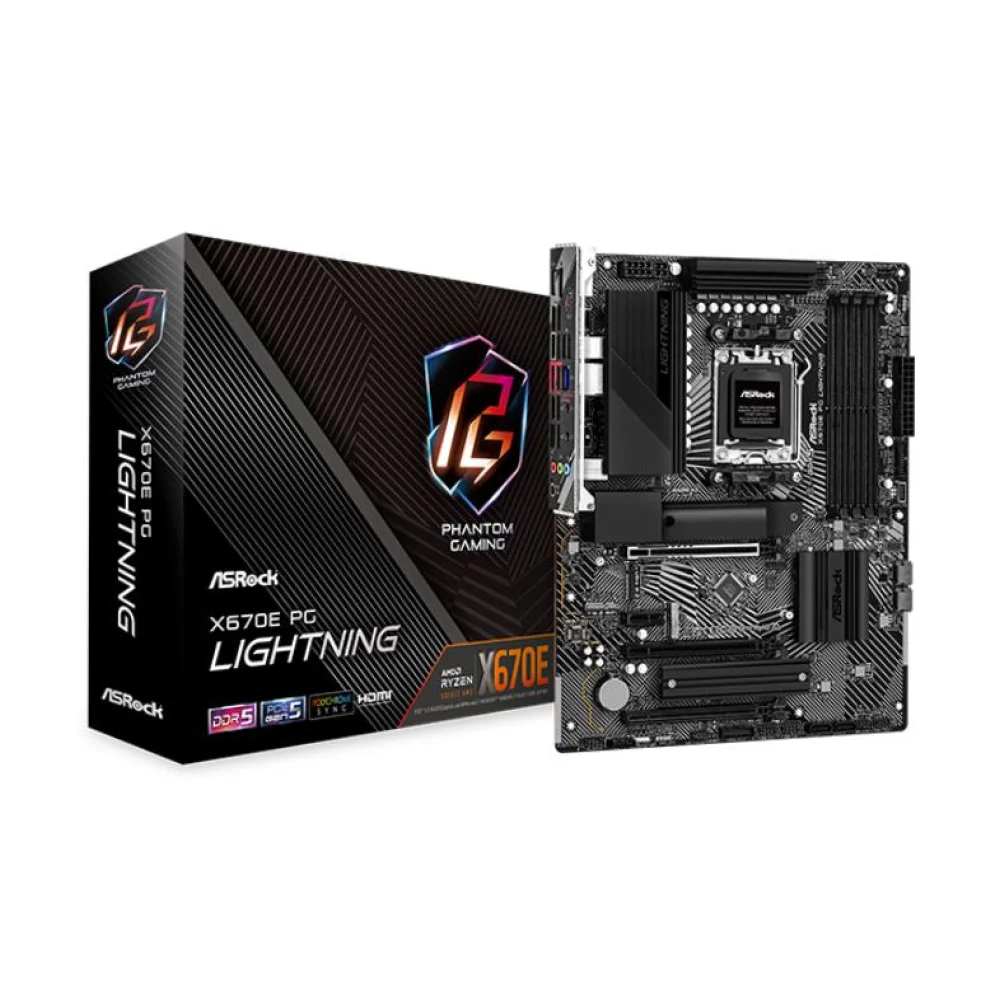

ASRock X670E PG Lightning (AM5) Motherboard

ASRock X670E PG Lightning (AM5) Motherboard: Unmatched Performance for Next-Gen Builds

The ASRock X670E PG Lightning (AM5) Motherboard is a high-end solution designed to unleash the full potential of AMD’s latest Ryzen processors, featuring cutting-edge power delivery, extensive connectivity, and advanced storage options for enthusiast-level gaming and content creation. This motherboard is built for extreme performance and future-proofing, ensuring a premium computing experience.

• Processor Support: It supports AMD Ryzen™ 7000 Series Processors, providing compatibility with the latest generation of high-performance AMD CPUs.
• Power Design: Features a robust 14+2+1 Phase Power Design with SPS (Smart Power Stage), ensuring stable and highly efficient power delivery for demanding workloads and overclocking.
• Memory Support: Equipped with 4 x DDR5 DIMM slots, it supports up to 6600+ MHz (OC), allowing for incredibly fast memory speeds to boost system responsiveness.
• PCIe 5.0 x16 Slot: Includes 1 PCIe 5.0 x16 slot, offering the latest generation of graphics card bandwidth for unparalleled gaming performance.
• PCIe 4.0 x16 Slots: Provides 2 PCIe 4.0 x16 slots, offering versatile expansion for additional graphics cards or high-bandwidth peripherals.
• PCIe 4.0 x1 Slot: Features 1 PCIe 4.0 x1 slot, ideal for smaller expansion cards like sound cards or capture cards.
• WiFi M.2 Slot: Contains 1 M.2 Key-E slot for WiFi, enabling easy installation of a compatible wireless module for internet connectivity.
• Graphics Output Options: Offers 1 HDMI and 1 DisplayPort as graphics output options, supporting integrated graphics from compatible AMD Ryzen CPUs.
• Audio Codec: Incorporates a Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio, delivering immersive high-definition sound for an enhanced audio experience.
• Blazing M.2 Storage: Includes 1 Blazing M.2 (PCIe Gen5x4) slot, providing the fastest possible storage interface for cutting-edge NVMe SSDs.
• Hyper M.2 Storage: Features 1 Hyper M.2 (PCIe Gen4x4) slot, offering high-speed storage compatible with PCIe Gen4 NVMe SSDs.
• Ultra M.2 Storage: Provides 1 Ultra M.2 (PCIe Gen3x4 & SATA3) slot, offering flexible storage options for both PCIe Gen3 NVMe and SATA M.2 SSDs.
• Additional M.2 Storage: Includes 1 M.2 (PCIe Gen4x2) slot, expanding the total high-speed storage capabilities.
• SATA3 Ports: Equipped with 4 SATA3 ports, allowing for connection of traditional SATA-based hard drives and SSDs.
• USB 3.2 Gen2x2 Type-C Ports: Features 2 USB 3.2 Gen2x2 Type-C ports (1 Rear, 1 Front header), offering extremely fast 20Gbps data transfer speeds.
• USB 3.2 Gen2 Type-A Port: Provides 1 USB 3.2 Gen2 Type-A port (Rear) for high-speed peripheral connectivity.
• USB 3.2 Gen1 Ports: Includes 10 USB 3.2 Gen1 ports (6 Rear, 4 Front headers), offering ample connectivity for various devices.
• LAN: Features Realtek 2.5G LAN, providing super-fast wired internet connectivity for smooth online gaming and large file transfers.
