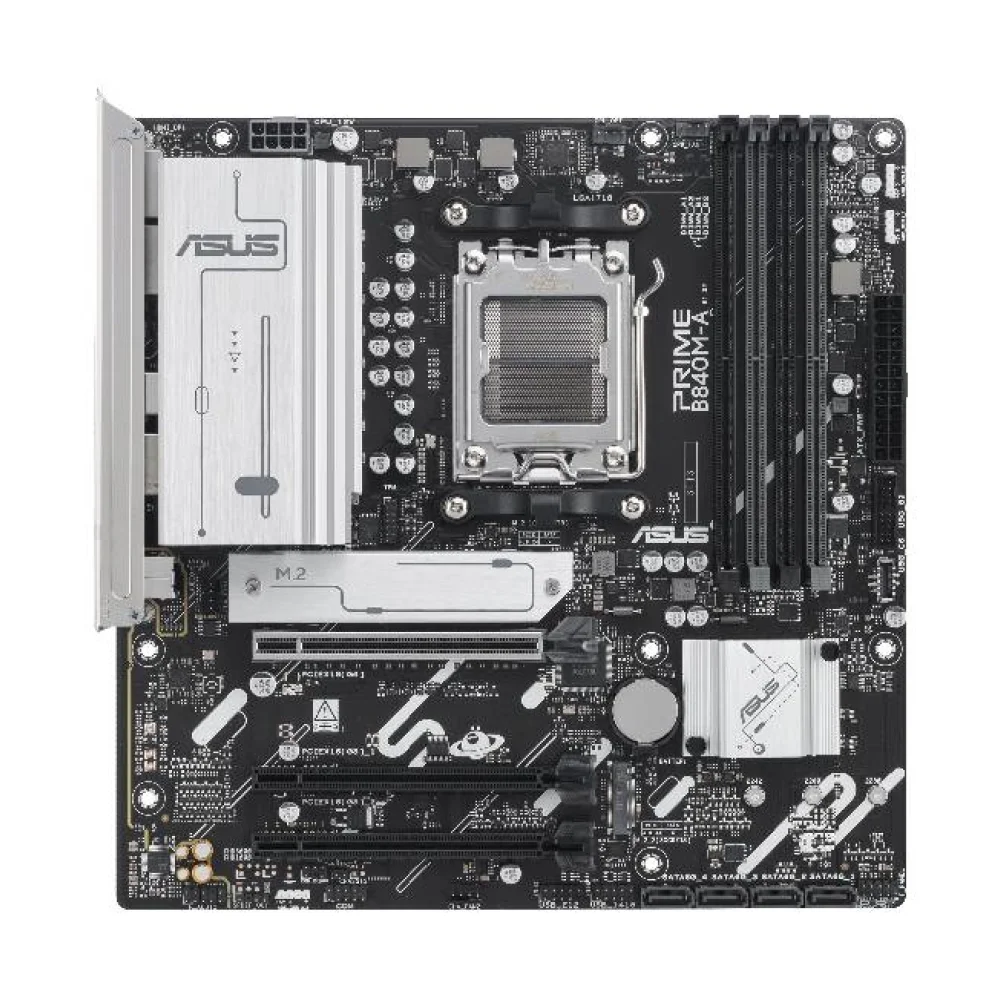

ASUS PRIME B840M-A-CSM Motherboard

ASUS PRIME B840M-A-CSM Motherboard: Essential Performance for Business and Home

The ASUS PRIME B840M-A-CSM Motherboard provides a stable and reliable foundation for AMD Ryzen-based systems, offering essential features and robust protection for both business and home computing environments. This motherboard is designed for consistent performance and long-term durability, making it a practical choice for various builds.

• Brand Heritage: This motherboard is from Asus, a leading name in computer hardware known for quality and innovation.
• Processor Compatibility: It features an AMD Socket AM5, providing broad compatibility with the latest Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
• Memory Capacity: With 4 x DIMM slots, it supports a substantial maximum memory capacity of 256GB, catering to diverse application needs.
• High-Speed DDR5: It supports DDR5 memory up to 7600+MT/s (OC), enabling fast data access and improved system responsiveness.
• Memory Flexibility: The board supports both ECC and Non-ECC Un-buffered DIMM modules, offering options for data integrity or standard consumer use.
• PCIe 4.0 x16 Slot: A primary PCIe 4.0 x16 slot operates in x16 mode, providing ample bandwidth for modern graphics cards.
• Additional PCIe Slots: It includes 2 x PCIe 3.0 x16 slots (supporting x1 mode), suitable for various expansion cards.
• Primary M.2 Slot: The M.2_1 slot (Key M) of type 2280 supports PCIe 4.0 x4 mode, offering fast NVMe SSD performance.
• Versatile M.2_2 Slot: The M.2_2 slot (Key M) of type 2242/2260/2280 supports PCIe 4.0 x4/x2 mode, providing flexible storage options.
• Third M.2 Slot: An M.2_3 slot (Key M) of type 2280 supports PCIe 3.0 x4 mode, adding further high-speed storage capability.
• RAID Support: It offers comprehensive RAID 0/1/5/10 support for Ryzen™ 9000 Series Processors, with tailored support for 8000 and 7000 series, enhancing data redundancy and performance.
• High-Speed USB: Features 2 x USB 10Gbps ports (Type-A) and 1 x USB 5Gbps port (Type-C®) for rapid data transfer with modern peripherals.
• Standard USB: Includes 4 x USB 2.0 ports (Type-A), ensuring compatibility with a wide range of devices.
• BIOS Convenience: A dedicated BIOS FlashBack™ button simplifies firmware updates without needing a CPU.
• SATA Connectivity: Provides 4 x SATA 6Gb/s ports for traditional hard drives and SSDs.
• Multiple Display Outputs: Equipped with 2 x DisplayPort and 1 x HDMI™ port, allowing for flexible multi-monitor setups.
• Audio Connectivity: Features 3 x Audio jacks for standard audio input and output.
• Fast Wired Network: A Realtek 2.5Gb Ethernet port ensures high-speed and stable wired internet connectivity.
• Operating System Support: It is compatible with both Windows 11 and Windows 10 64-bit, offering broad OS flexibility.
• Compact Form Factor: Designed in a micro-ATX Form Factor measuring 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm), ideal for smaller PC builds.
• Enhanced Durability: Benefits from ASUS 5X PROTECTION III features, providing multiple layers of hardware safeguards for exceptional durability.
• Reliable Warranty: Comes with a 3-Year Warranty, offering peace of mind and long-term support.
