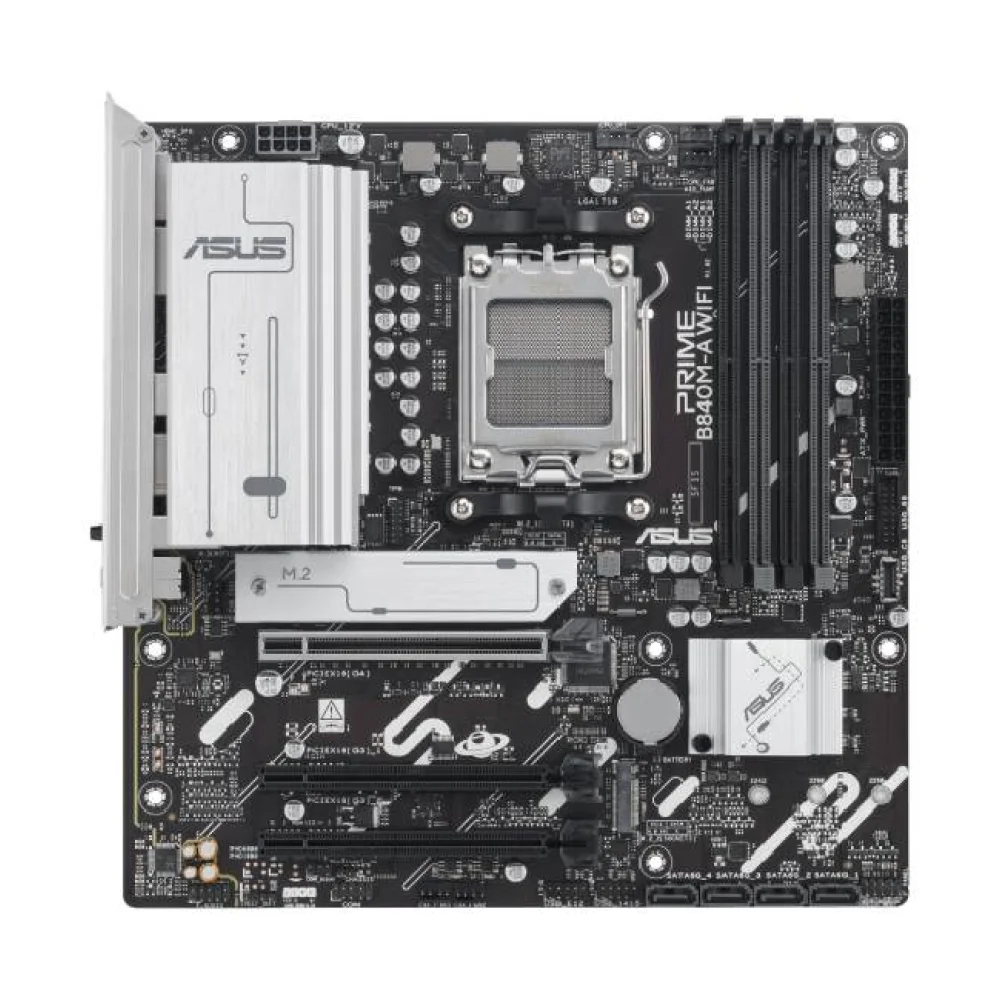

ASUS PRIME B840M-A WIFI-CSM Motherboard

ASUS PRIME B840M-A WIFI-CSM Motherboard: Reliable Performance for Everyday Builds

The ASUS PRIME B840M-A WIFI-CSM Motherboard offers a stable and feature-rich foundation for mainstream AMD Ryzen builds, combining essential connectivity with robust performance for daily computing and light gaming. This motherboard is designed for reliability and ease of use, making it an excellent choice for both home and business environments.

• Brand Heritage: This motherboard is from Asus, a leading name in computer hardware known for quality and innovation.
• Processor Compatibility: It features an AMD Socket AM5, providing broad compatibility with the latest Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
• Memory Capacity: With 4 x DIMM slots, it supports a substantial maximum memory capacity of 256GB, catering to diverse application needs.
• High-Speed DDR5: It supports DDR5 memory up to 7600+MT/s (OC), enabling fast data access and improved system responsiveness.
• Memory Flexibility: The board supports both ECC and Non-ECC Un-buffered DIMM modules, offering options for data integrity or standard consumer use.
• PCIe 4.0 x16 Slot: A primary PCIe 4.0 x16 slot operates in x16 mode, providing ample bandwidth for modern graphics cards.
• Additional PCIe Slots: It includes 2 x PCIe 3.0 x16 slots (supporting x1 mode), suitable for various expansion cards.
• Primary M.2 Slot: The M.2_1 slot (Key M) of type 2280 supports PCIe 4.0 x4 mode, offering fast NVMe SSD performance.
• Versatile M.2_2 Slot: The M.2_2 slot (Key M) of type 2242/2260/2280 supports PCIe 4.0 x4/x2 mode, providing flexible storage options.
• Third M.2 Slot: An M.2_3 slot (Key M) of type 2280 supports PCIe 3.0 x4 mode, adding further high-speed storage capability.
• RAID Support: It offers comprehensive RAID 0/1/5/10 support for Ryzen™ 9000 Series Processors, with tailored support for 8000 and 7000 series, enhancing data redundancy and performance.
• High-Speed USB: Features 2 x USB 10Gbps ports (Type-A) and 1 x USB 5Gbps port (Type-C®) for rapid data transfer with modern peripherals.
• Standard USB: Includes 4 x USB 2.0 ports (Type-A), ensuring compatibility with a wide range of devices.
• BIOS Convenience: A dedicated BIOS FlashBack™ button simplifies firmware updates without needing a CPU.
• SATA Connectivity: Provides 4 x SATA 6Gb/s ports for traditional hard drives and SSDs.
• Multiple Display Outputs: Equipped with 2 x DisplayPort and 1 x HDMI™ port, allowing for flexible multi-monitor setups.
• Audio Connectivity: Features 3 x Audio jacks for standard audio input and output.
• Fast Wired Network: An Intel® 2.5Gb Ethernet port ensures high-speed and stable wired internet connectivity.
• Operating System Support: It is compatible with both Windows 11 and Windows 10 64-bit, offering broad OS flexibility.
• Compact Form Factor: Designed in a micro-ATX Form Factor measuring 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm), ideal for smaller PC builds.
• Enhanced Durability: Benefits from ASUS 5X PROTECTION III features, providing multiple layers of hardware safeguards for exceptional durability.
• Reliable Warranty: Comes with a 3-Year Warranty, offering peace of mind and long-term support.
