Cooler Master MWE Bronze V2 650W 230V Power Supply (MPE-6501-ACABW-B)

Cooler Master

The Cooler Master MWE Bronze V2 650W 230V Power Supply (MPE-6501-ACABW-B) is an 80 PLUS Bronze certified (230V EU) non-modular PSU. Featuring Active PFC, a DC-to-DC + LLC circuit design, and a 120mm HDB fan for quiet, temperature-sensitive cooling, it offers reliable and efficient power with comprehensive protections (OVP, OPP, SCP, UVP, OTP) for mainstream PC builds.

384,000 Ks

Cooler Master MWE Bronze V2 650W 230V Power Supply: Reliable and Efficient Power Delivery

The Cooler Master MWE Bronze V2 650W 230V Power Supply offers a simple yet highly reliable and efficient way to power your PC system safely and effectively, focusing on core computing needs without unnecessary complexities. This power supply is designed to deliver consistent performance with enhanced durability and quiet operation for mainstream builds.

  • Efficiency Rating: It holds an 80 PLUS Bronze efficiency rating (230V EU certified), ensuring a typical efficiency of 85% for reduced energy waste.
  • Circuit Design: The PSU features a DC-to-DC + LLC Circuit Design, meticulously crafted to efficiently convert power and minimize ripple noise for stable voltage output.
  • Temperature Resistance: It is built with High Temperature Resistance, ensuring stable operation even in demanding thermal environments.
  • Peak Power Tolerance: The unit offers Peak Power Tolerance, allowing it to handle sudden spikes in power demand without instability.
  • Durability and Safety: The MWE Bronze V2 is designed to be Durable, Reliable, and Safe, providing peace of mind for your system’s longevity.
  • Simplified Power: It offers a straightforward and reliable way to POWER UP your system, focusing on essential functionality.

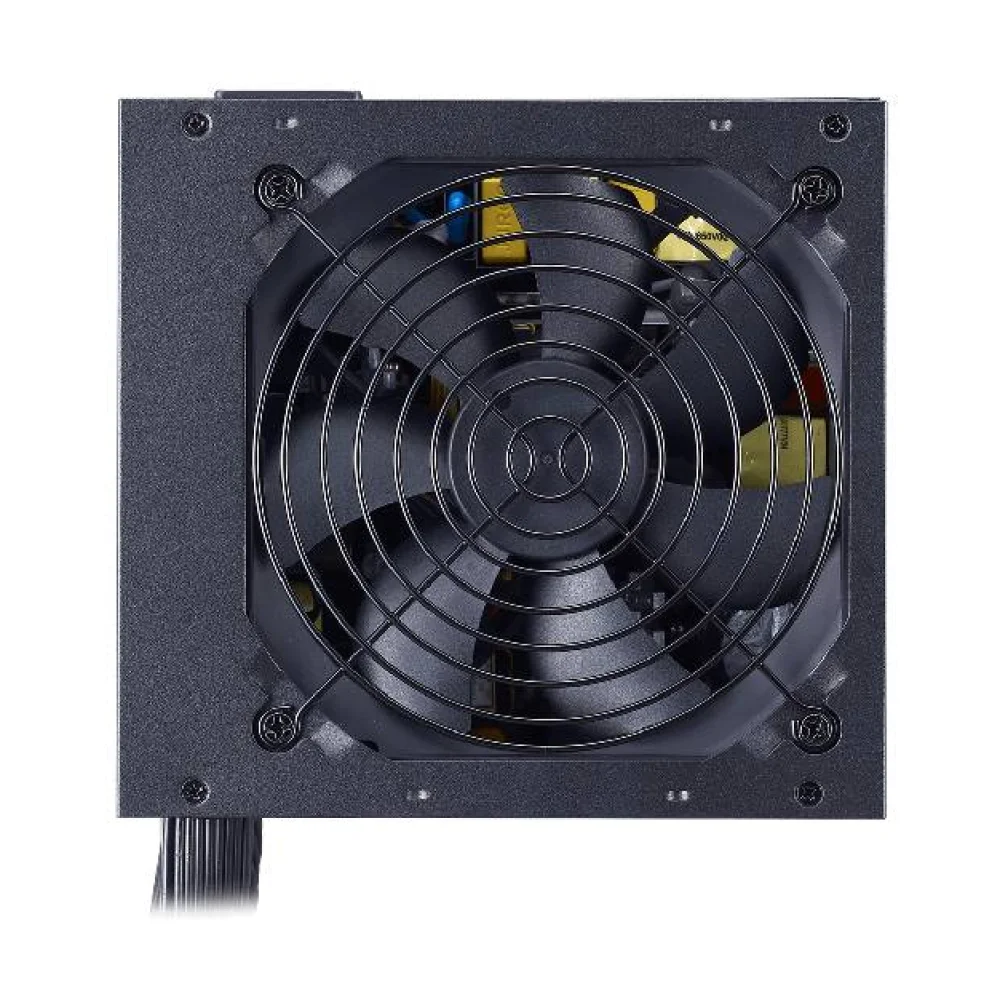

  • Cooling Solution: A thermally sensitive 120mm HDB fan is employed, which adjusts its speed based on system temperature to maintain optimal cooling with minimal noise.
  • Single +12V Rail: The use of a Single +12V Rail ensures consistent and reliable power delivery to all components from a unified source.
  • Voltage Conversion: The DC-to-DC Circuit Design efficiently converts 12V power to 3V and 5V levels, minimizing ripple noise and protecting connected components.
Category: Brand:
BrandCooler Master
ModelMPE-6501-ACABW-B
Wattage650W
ATX VersionATX 12V V2.52
PFCActive PFC
Input Voltage200-240Vac
Input Current10-5A
Input Frequency50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm
Fan Size120mm
Fan BearingHDB
Fan Speed2400 RPM
Noise Level @ 20%16.54 dBA
Noise Level @ 50%26.5 dBA
Noise Level @ 100%42.5 dBA
Efficiency88% Typically
80 PLUS Rating80 PLUS Bronze EU 230V
ErP 2014 Lot 3Yes
Power Good Signal100 – 500 ms
Hold Up Time>14ms at 100% Full Load@230Vac
MTBF>100,000 Hours
ProtectionsOVP, OPP, SCP, UVP, OTP
RegulatoryCCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors6
Peripheral 4 Pin Connectors3
PCI-e 6+2 Pin Connectors4
SeriesMWE Bronze Series
80 PlusBronze
ModularNon Modular
