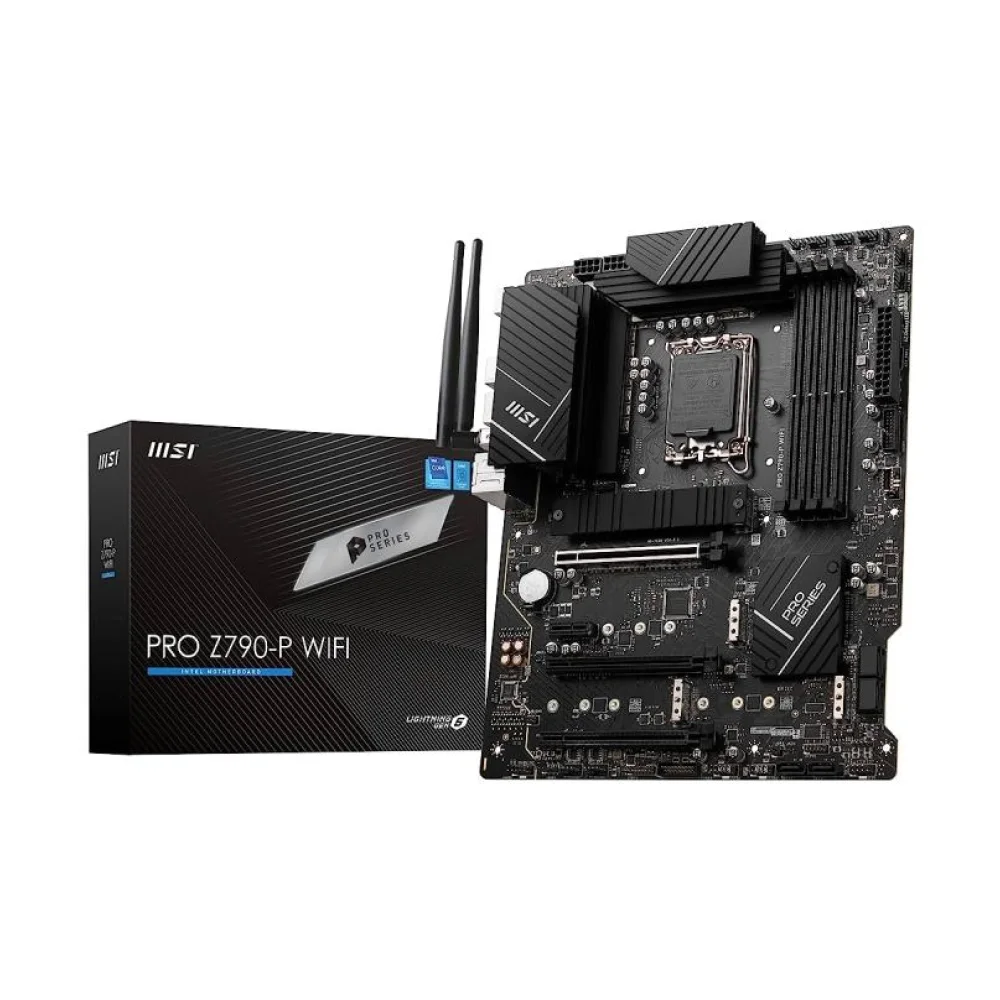

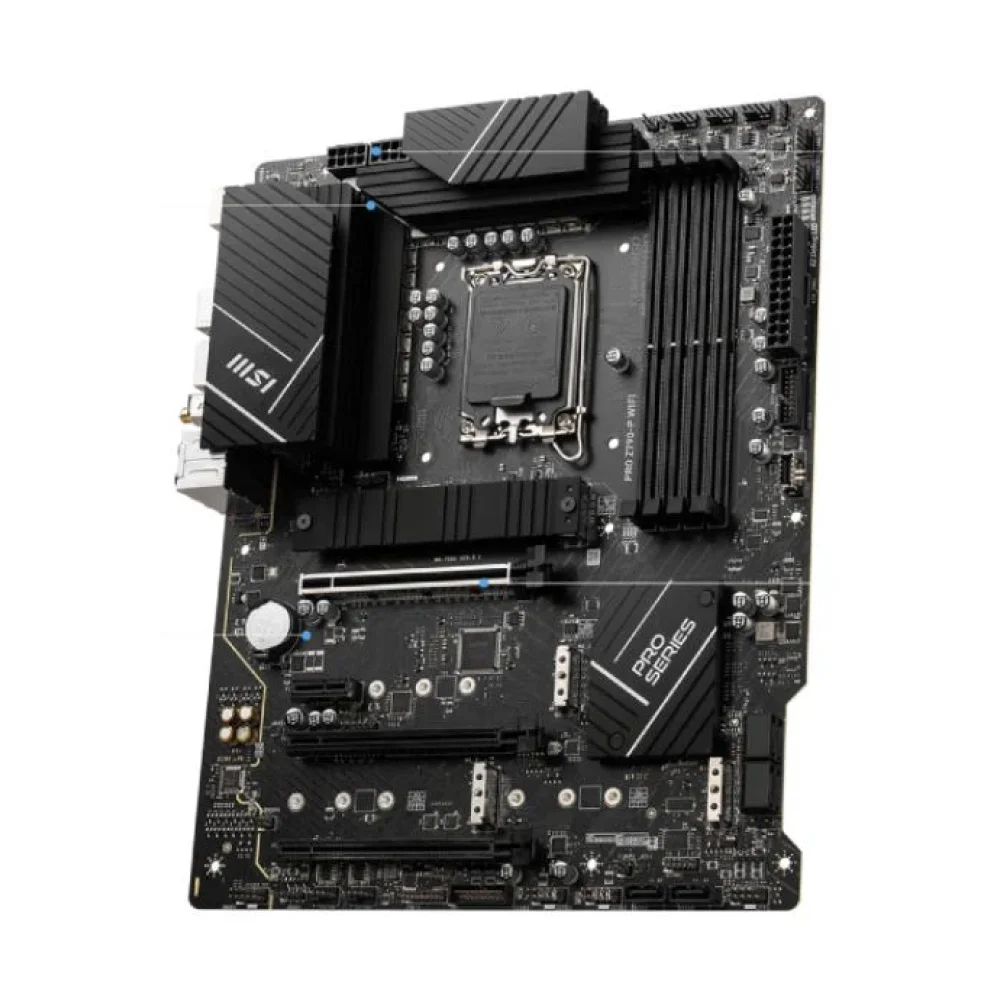

MSI Pro Z790-P WiFi (12th/13th)Gen MotherBoard

MSI

The MSI PRO Z790-P WiFi is a robust LGA1700 motherboard for 12th/13th Gen Intel Core/Pentium/Celeron CPUs. It supports up to 192GB DDR5 7000+(OC) RAM, features a PCIe 5.0 x16 slot, four M.2 slots (PCIe 4.0/SATA), Wi-Fi 6E, and Intel 2.5Gb LAN. With comprehensive USB (including 20Gbps Type-C), RAID support, HDMI/DP outputs, and 7.1 HD Audio, this ATX board delivers high performance and extensive connectivity for professional and gaming builds.

1,280,000 Ks

MSI PRO Z790-P WiFi Motherboard: Professional Performance and Connectivity

The MSI PRO Z790-P WiFi Motherboard offers a robust and feature-rich platform for building high-performance Intel-based systems, combining extensive connectivity with advanced memory and storage capabilities for professional and enthusiast users. This motherboard is designed for stability and efficiency, making it an excellent choice for demanding workloads and seamless multitasking.

  • Chipset: It is built around the Intel Z790 Chipset, providing a powerful foundation for system operations.
  • CPU Support: The LGA 1700 socket supports both 12th and 13th Gen Intel® Core™ Processors, along with Pentium® Gold and Celeron® Processors.
  • Memory Capacity: Equipped with 4x DDR5 DIMM slots, it supports a substantial maximum memory capacity of 192GB.
  • Memory Speed: It supports a wide range of DDR5 memory speeds up to 7000+(OC) MHz, ensuring high bandwidth for demanding applications.
  • Memory Features: The motherboard supports Intel® XMP 3.0 OC for easy overclocking and features Dual-Controller Dual-Channel mode for optimized performance.
  • Integrated Graphics Outputs: It includes HDMI™ 2.1 with HDR and DisplayPort 1.4, providing high-resolution video output up to 4K 60Hz (requires CPU with integrated graphics).
  • PCIe 5.0 Slot: The PCI_E1 slot is a cutting-edge PCIe 5.0 x16 slot, directly connected to the CPU for maximum graphics card performance.
  • Expansion Slots: It offers additional expansion with two PCIe 3.0 x1 slots and one PCIe 4.0 x4 slot from the chipset, providing versatility for various add-in cards.
  • M.2 Storage (CPU): The M.2_1 slot is directly connected to the CPU, supporting PCIe 4.0 x4 NVMe SSDs for ultra-fast primary storage.
  • M.2 Storage (Chipset): It features three additional M.2 slots (M.2_2, M.2_3, M.2_4) connected via the chipset, supporting PCIe 4.0 x4 and SATA modes for flexible storage expansion.
  • SATA Ports: Provides 6x SATA 6G ports, offering ample connectivity for traditional SATA storage devices.
  • RAID Support: Comprehensive RAID 0, 1, 5, and 10 support is available for both SATA and M.2 NVMe storage devices, enhancing data redundancy and performance.
  • USB 20Gbps: It includes a USB 3.2 Gen2x2 Type C port (Rear) for incredibly fast 20Gbps data transfer speeds.
  • USB 10Gbps: Features USB 3.2 Gen2 Type A (Rear) and USB 3.2 Gen2 Type C (Front) for high-speed peripheral connections.
  • USB 5Gbps: Provides USB 3.2 Gen1 Type A ports (Rear and Front) for standard high-speed USB devices.
  • USB 2.0: Includes USB 2.0 ports (Rear and Front) for legacy peripheral compatibility.
  • Wireless Connectivity: Features a pre-installed Intel® Wi-Fi 6E module supporting MU-MIMO TX/RX across 2.4GHz, 5GHz, and 6GHz bands for speeds up to 2.4Gbps.
  • Bluetooth: Includes Bluetooth® 5.3 for seamless wireless peripheral connectivity.
  • Wired LAN: Equipped with Intel® 2.5Gbps LAN, ensuring high-speed and stable wired network performance.
  • Audio: Utilizes the Realtek® ALC897 Codec for 7.1-Channel High Definition Audio, providing immersive sound.
  • Internal Connectivity: Offers numerous internal headers for power, fans, front panel, chassis intrusion, audio, Thunderbolt, and tuning control.
  • LED Indicators: Features 4x EZ Debug LEDs for quick and easy troubleshooting during system startup.
  • TPM Support: Includes a TPM pin header to support TPM 2.0, enhancing system security.
  • Warranty: Comes with a 3-Year Warranty, ensuring long-term reliability and support.
Category: Brand:
BrandMSI
ChipsetINTEL Z790
CPU SupportSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
CPU SocketLGA 1700
Memory Slots4x DDR5 DIMMs
Max Memory Capacity192GB
Memory Support Speed7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max OC Freq (1DPC 1R)Up to 7000+ MHz
Max OC Freq (1DPC 2R)Up to 6600+ MHz
Max OC Freq (2DPC 1R)Up to 6400+ MHz
Max OC Freq (2DPC 2R)Up to 5600+ MHz
Memory FeaturesSupports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory
HDMI™ Port1 (HDMI™ 2.1 with HDR, 4K 60Hz max resolution)
DisplayPort1 (DP 1.4, 4K 60Hz max resolution)
PCI-E x16 Slots3 (PCI_E1 Gen PCIe 5.0 x16 from CPU; PCI_E3 Gen PCIe 4.0 x4 from Chipset)
PCI-E x1 Slots2 (PCI_E2 Gen PCIe 3.0 x1 from Chipset; PCI_E4 Gen PCIe 3.0 x1 from Chipset)
M.2 Slots4 (M.2_1 CPU PCIe 4.0 x4; M.2_2 Chipset PCIe 4.0 x4; M.2_3 Chipset PCIe 4.0 x4/SATA; M.2_4 Chipset PCIe 4.0 x4/SATA)
SATA 6G Ports6
RAID SupportRAID 0, RAID 1, RAID 5 and RAID 10 for SATA and M.2 NVMe storage devices
USB Ports (Rear)4x USB 2.0, 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2x2 Type C
USB Ports (Front)4x USB 2.0, 4x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type C
Wireless / BluetoothIntel® Wi-Fi 6E (802.11 a/b/g/n/ac/ax, MU-MIMO TX/RX, 2.4/5/6GHz up to 2.4Gbps), Bluetooth® 5.3
LANIntel® 2.5Gbps LAN
AudioRealtek® ALC897 Codec, 7.1-Channel High Definition Audio
Internal I/OPower Connectors (ATX_PWR, CPU_PWR), CPU Fan, Pump Fan, System Fan, Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), TBT connector (JTBT), Tuning Controller (JDASH), Addressable V2 RGB LED (JARGB_V2), RGB LED (JRGB), TPM pin header
LED Feature4x EZ Debug LED
Warranty3 Years
